To use CADY, all you need is to do is to upload your Netlist and BOM files
CADY supports various netlist formats from all major ECAD vendors.
Please choose your ECAD environment below for an export guideline of the relevant netlist:
Any .csv/.xlsx/.xls file is supported, as long as it contains at least one manufacturer part number for each part reference.
Feel free to download and review a template here:

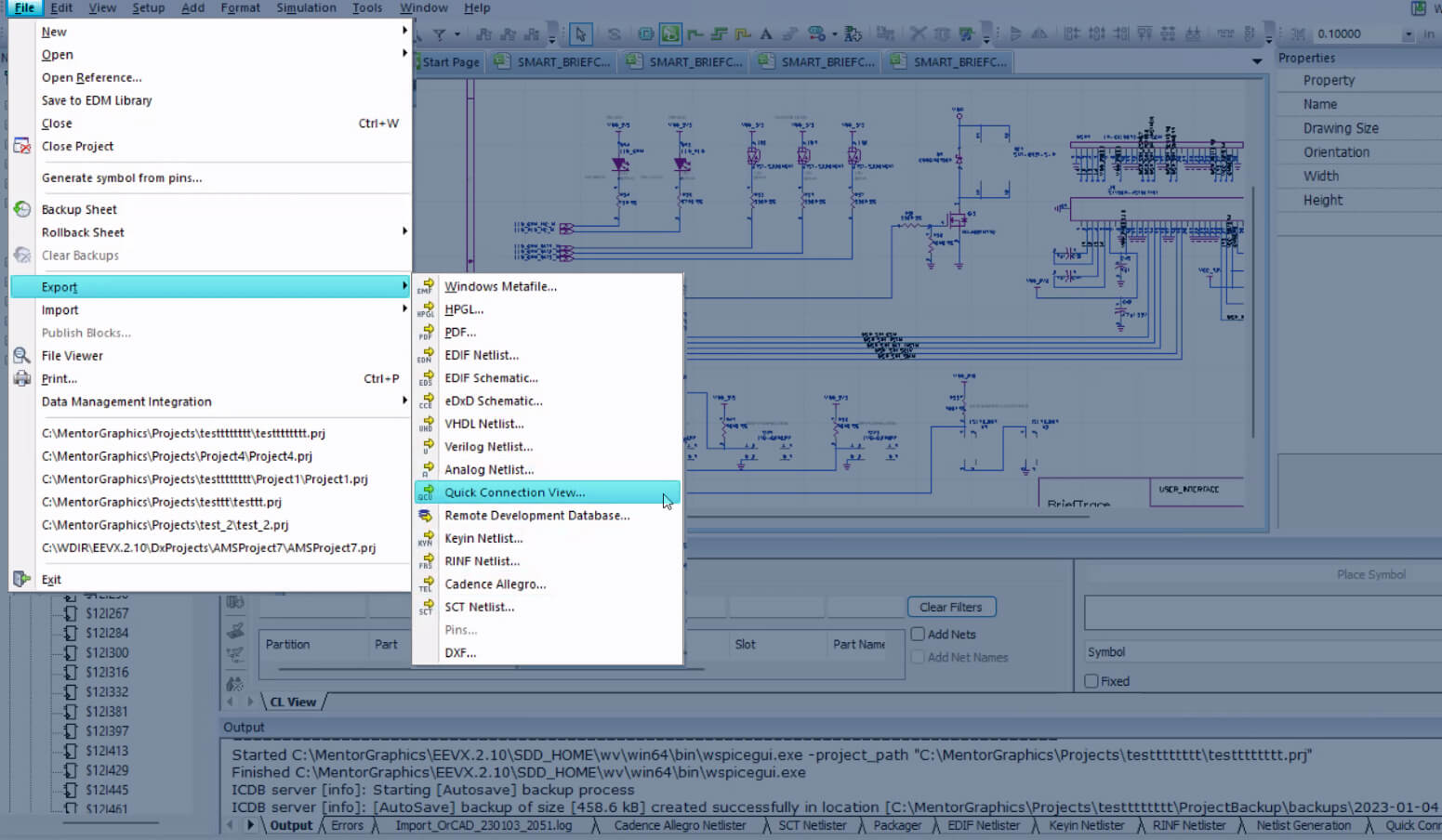

Go to File -> Export -> Quick Connection View…

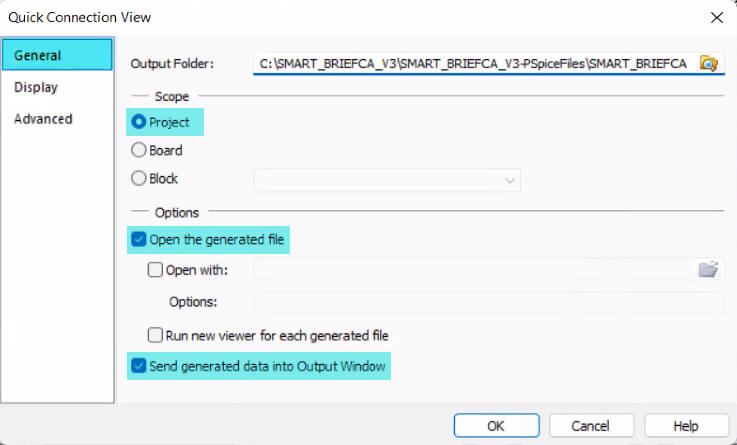

To export the netlist, press OK. For a new project, first configure the settings as shown in the next steps

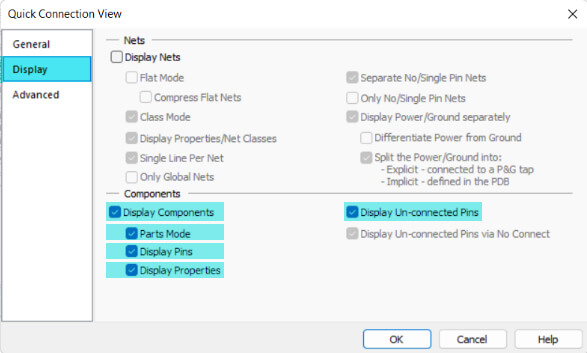

Go to the “Display” tab and select as shown below.

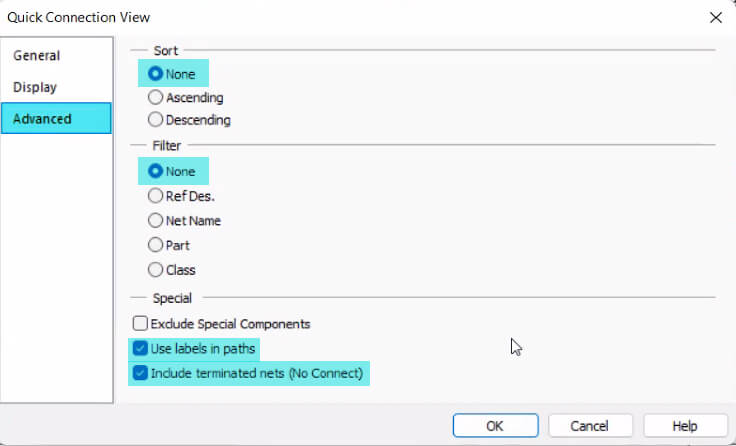

Go to the “Advanced” tab, set the “Filter” to “None”, and select the checkboxes as shown below.

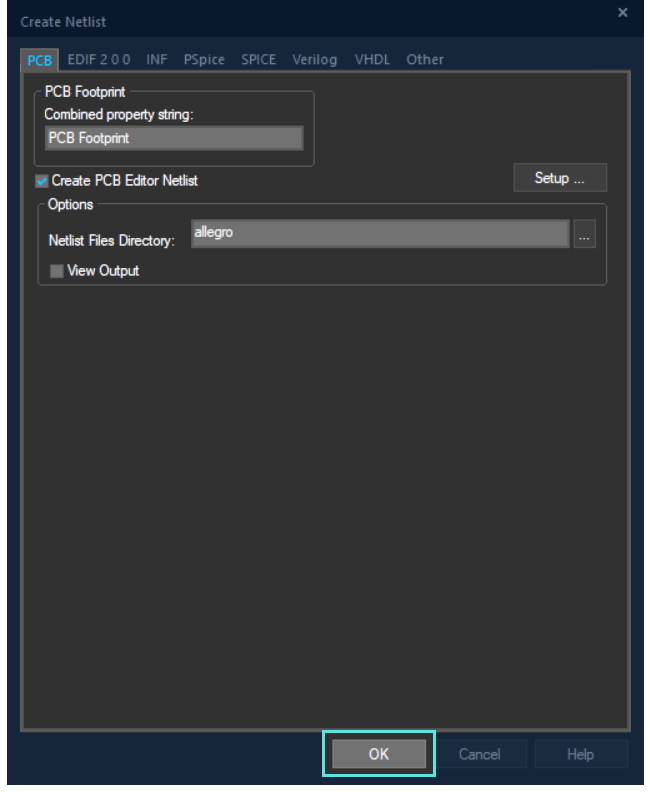

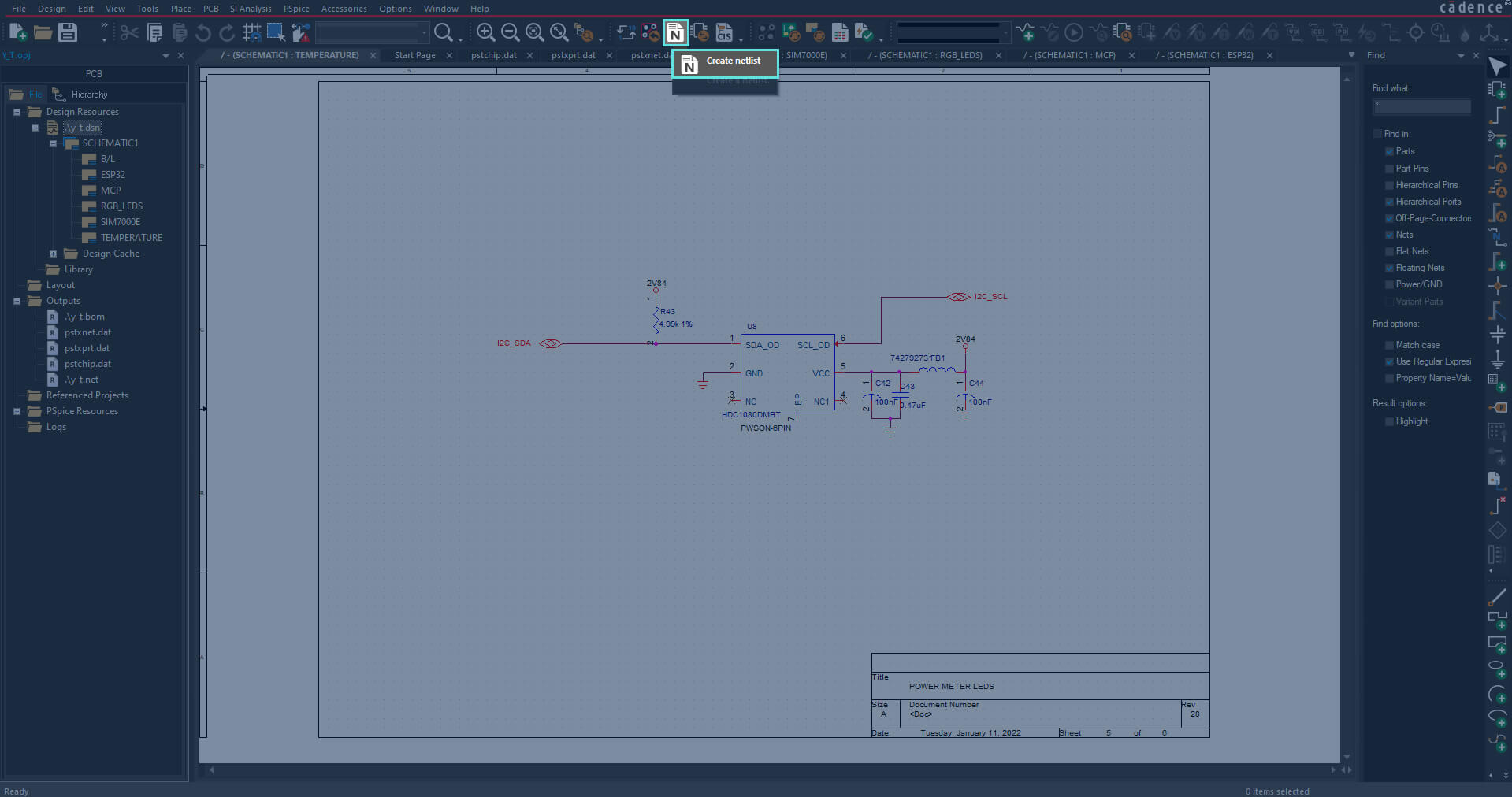

Click the “Create Netlist” at the top.
Then, on the following pop-up, press “OK”.

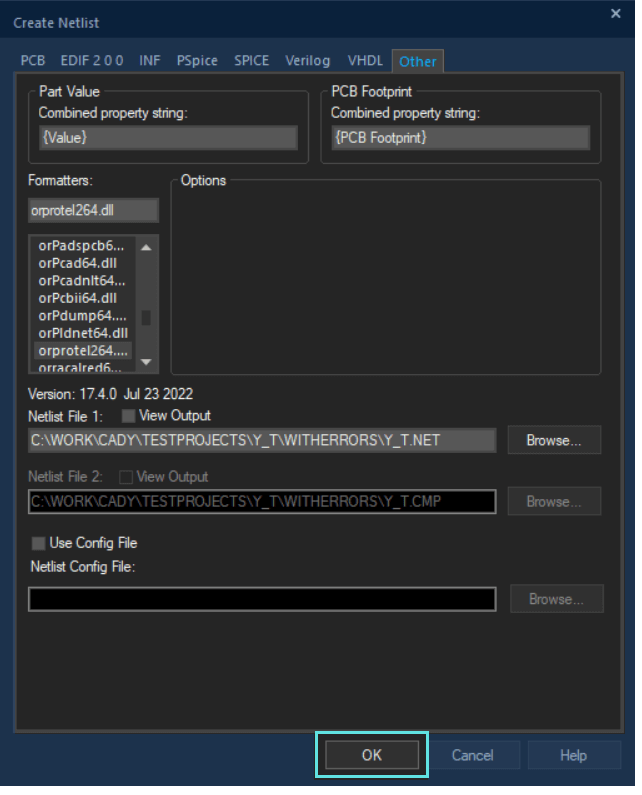

In case of issues with the Netlist, please verify that the settings in the “Other” tab are as follows

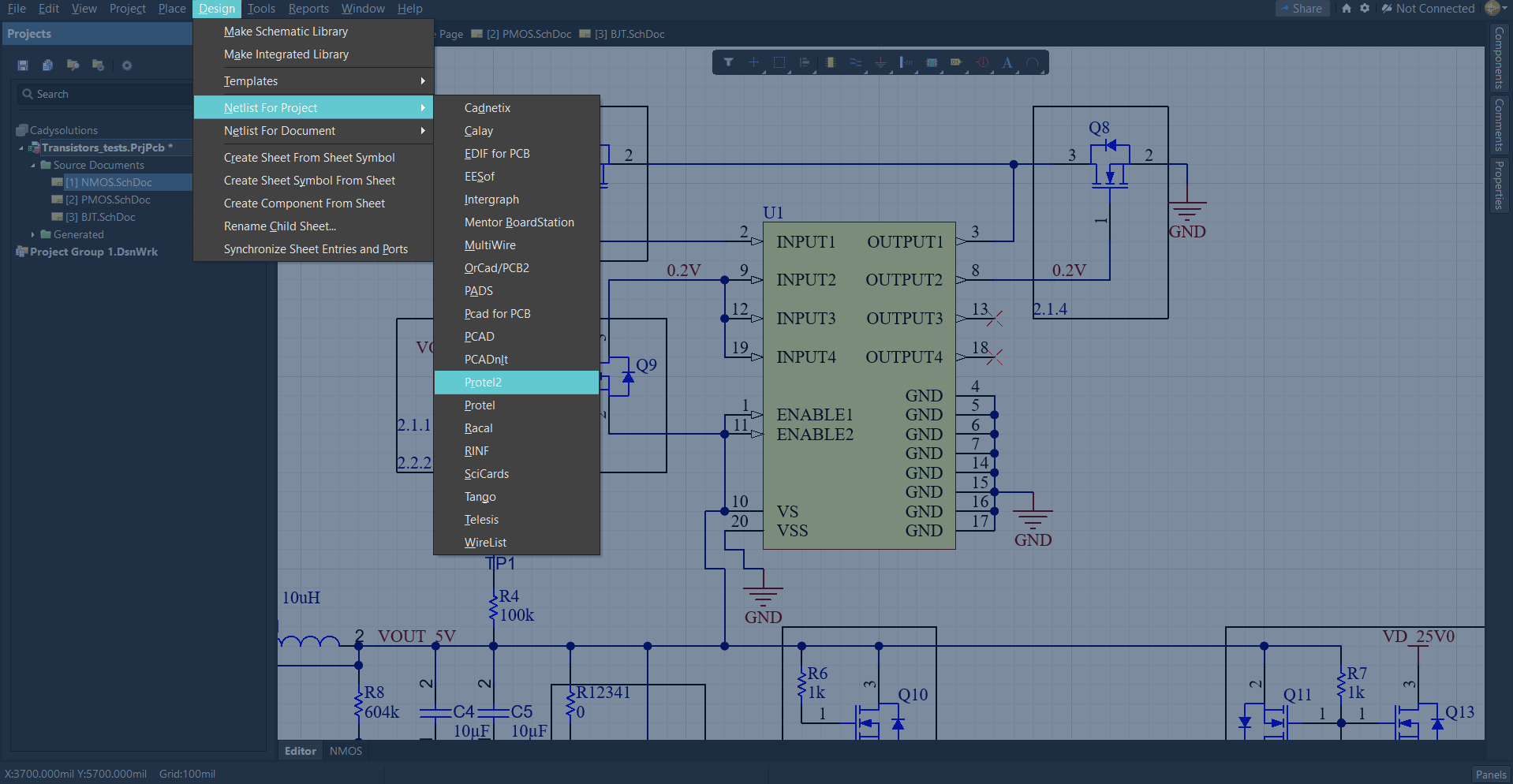

While viewing any “.SchDoc” file, navigate to Design -> Netlist For Project -> Protel2
The file can be found in your project directory at “Projects Output For <project name>”

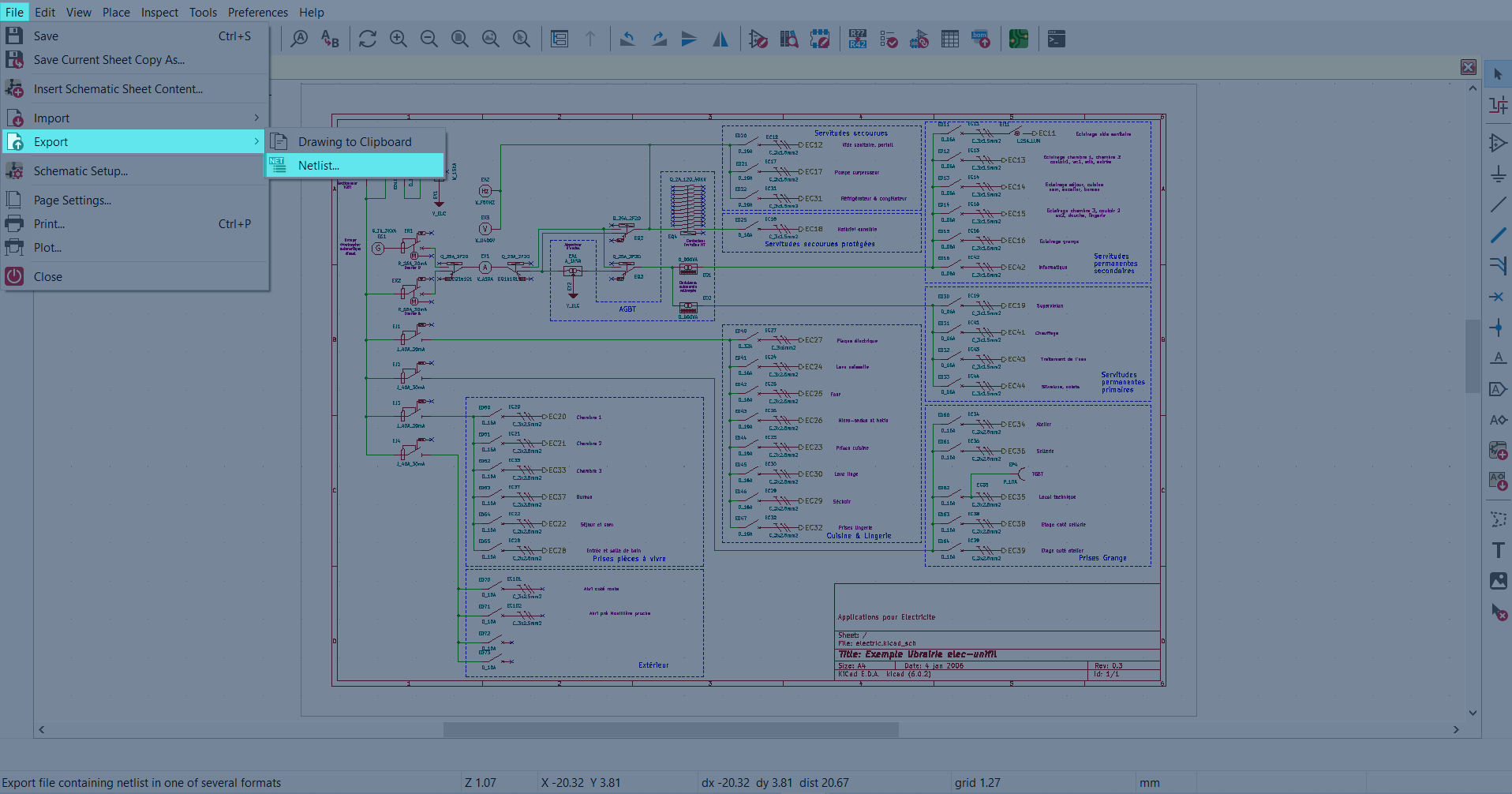

Navigate to File -> Export -> Netlist

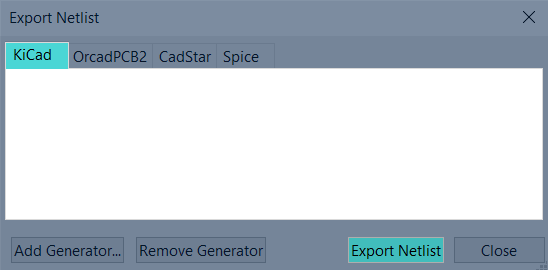

“Then, on the KiCad tab, select “Export Netlist”

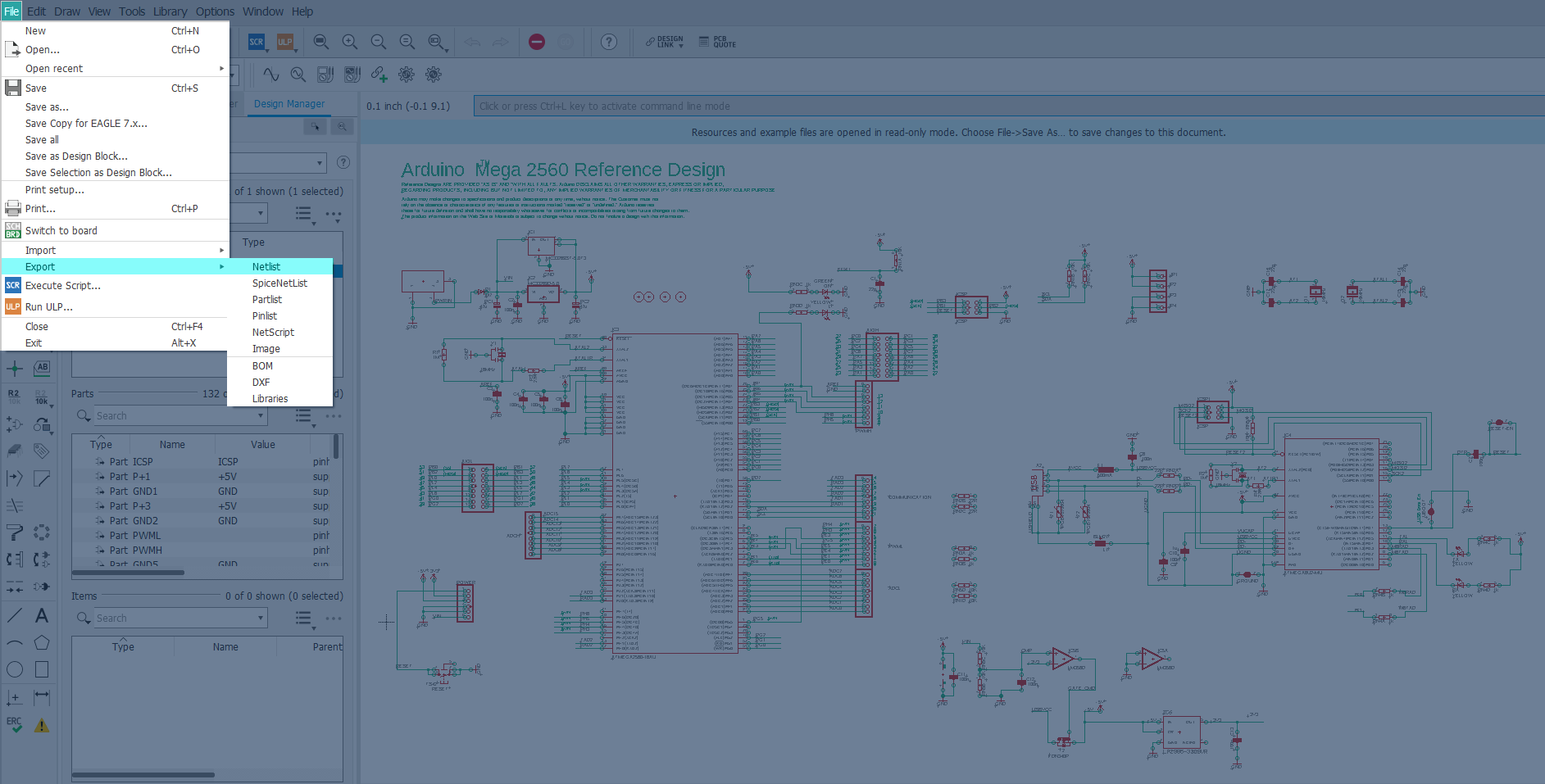

Navigate to File -> Export -> Netlist.

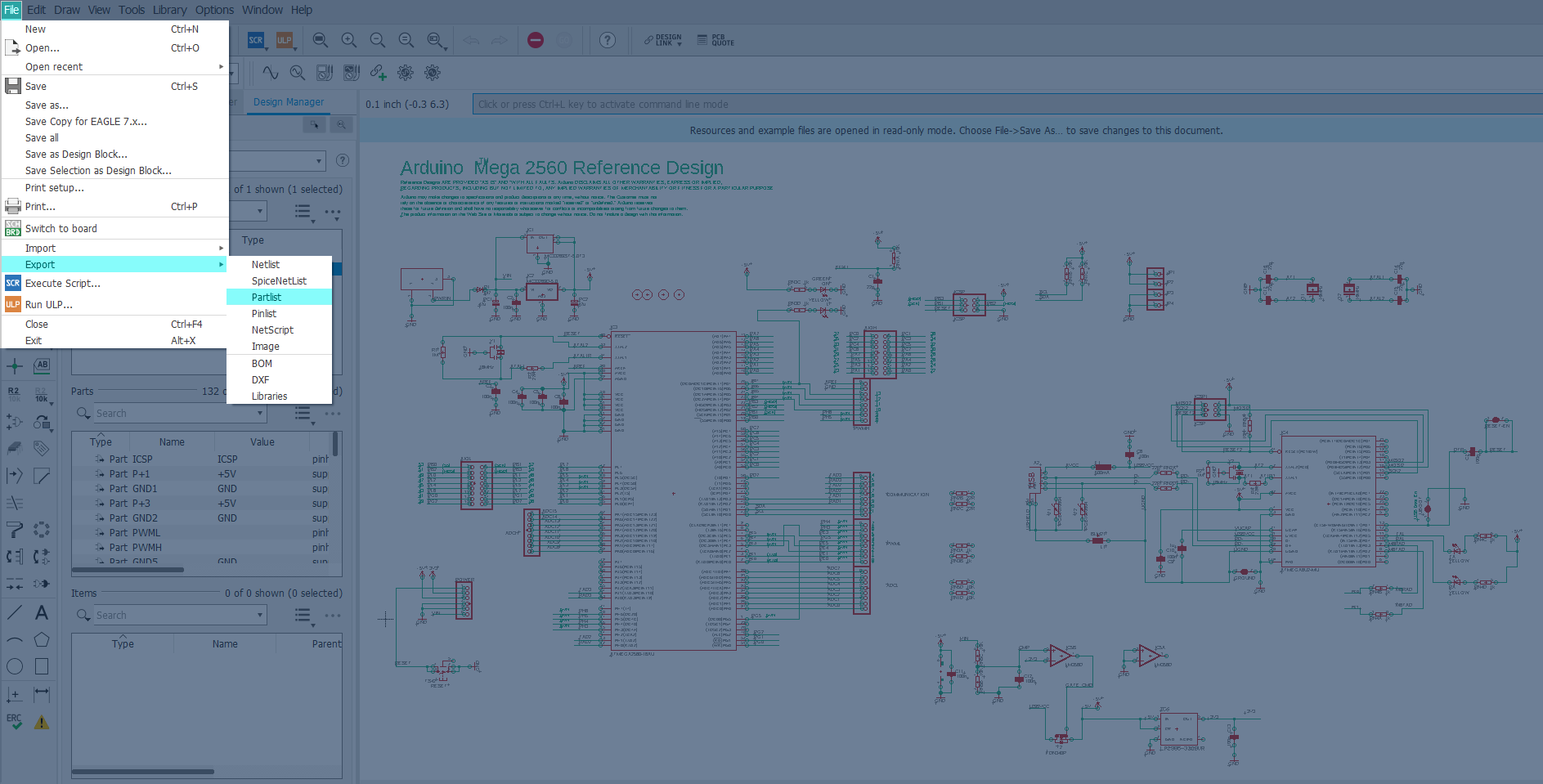

Navigate to File -> Export -> Partlist
Note: The Netlist file must have “netlist” in its file name, and the Partlist file must have “partlist” in its file name.

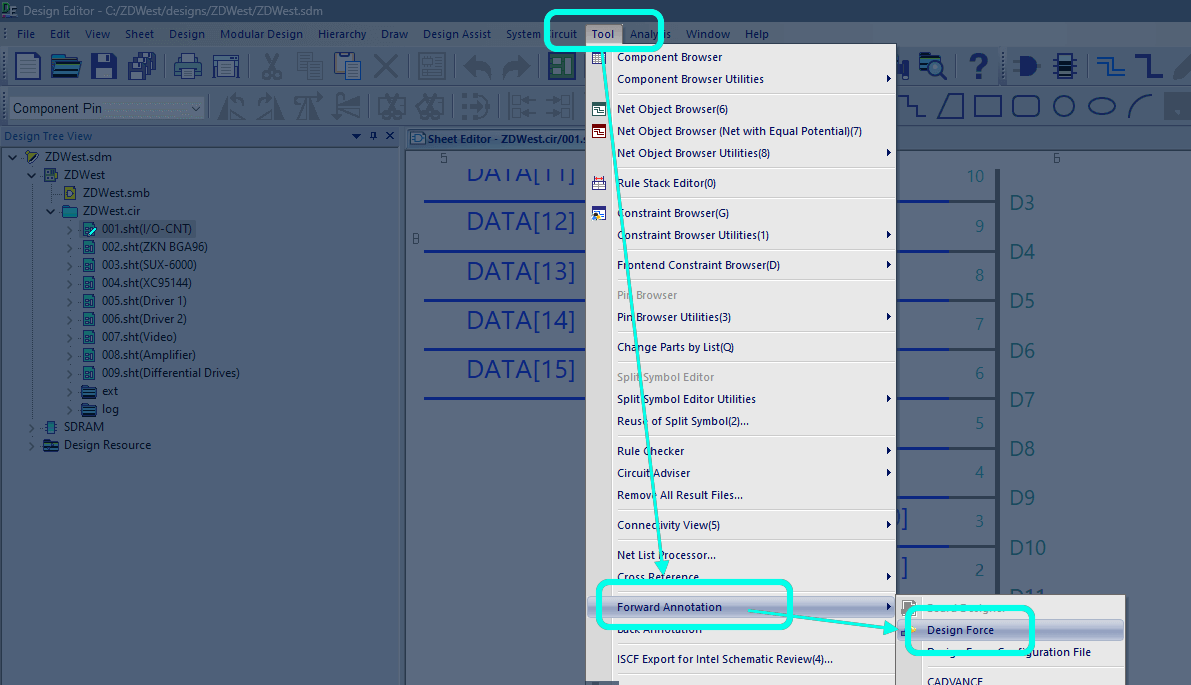

Navigate to Tool -> Forward Annotation -> Design Force.
Export .NDF Netlist files.
